We offer tailor-made and standardized system solutions from quality source.We also provide competent support to our customers, from concept and development, via construction, assembly, up to commissioning and support.
VIBRATION TEST TECHNOLOGY
HIGHLY QUALIFIED ENGINEERING! FLEXIBILITY BY KNOW-HOW!
TIRA Vibration Test Systems
These vibration exciters (also called shakers) use permanent magnets and are available as portable and stationary systems for simulating ambient vibration conditions. Robust design ensures a long service life, and typical applications include structure analysis and testing smaller subassemblies. These shakers are characterized by high lateral and axial stiffness and come in lightweight construction as specified by industrial users.

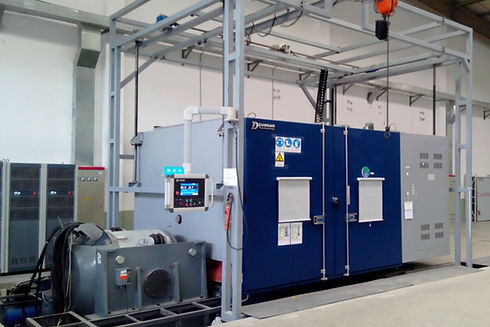

Climatic chamber is special designed to cooperate with shaker, Customized by the different size of the shaker extender;
The chamber can move horizontal and vertically to match different working position;
Flexible material to ensure heat-insulation performance between chamber and shaker.
Chamber volume: 0.5m3-25m3
Temperature range: -70°C—+150°C
Temperature rate of change: 1°C — 15°C/min
Humidity range: 10%-98%RH
Infrared simulation system: Optional
DUT Crane system: Optional
TIRA Vibration Test Systems – Temperature/Climatic Test Systems
Quality, reliability and safety of products require utmost care from the concept to the end-user. To meet this pretentious requirement, one nowadays investigates the interac- tions between objects and their direct or indirect environment by means of environmental testing systems.
CLIMATIC TEST WALK-IN CHAMBER
Standard Volume 2m3, 4m3, 6m3, 8m3, 12m3;
Temperature Range: -70°C — +150°C
Humidity Range: 10% — 98%RH
Customized product by different volume and change of rate;
Integrated structure, no field installation.
Suitable for large size DUT.
ALTITUTE TEST CHAMBER
Vacuum chamber can simulation the altitude, temperature and humidity environment.
Temperature Range: -70°C — +120°C
Humidity Range: 10% — 95%RH
The regular controlled pressure up to 1 mbar;
Special chamber can reach the pressure of 10-3mbar;
Temperature is controlled by heat radiation under low pressure.
Battery Safety system: Optional
DRIVE IN SOLAR SIMULATION TEST CHAMBER
By simulating the extreme weather condition (Example: in South Florida and Arizona), the chamber can evaluate resistance to insulation of vehicle components by measuring gaps and flushness and checking condition of visible parts.
The part or assembly as fitted to the vehicle is subjected to sunlight, modulated through temperature and humidity regulation for a certain number of cycles, simulating the alternating of non-exposure and exposure;
Temperature range: -40°C—+80°C;
Humidity range: 10%-95%R.H.
Irradiance: 400-1200W/m2 UV/Visible/Infrared Radiation, close to CIE85;
Multi-variables control logic, feedback control based on irradiation intensity or black standard temperature;
Equipped with automatic lifting lamp bank to match different vehicles and gain optimum irradiation uniformity;
Small transparent test box for components solar simulation test; \
CLIMATIC CHAMBER FOR AIRBAG DEPLOYMENT TEST
The integration of test chamber, airbag static deployment system and lighting system can complete the whole process of reaching low temperature, opening the door, igniting the airbag and ventilation automatically;
It contributes to improved test efficiency and precision.
Temperature range: -50°C - +110°C;
Auto-sliding door and automatic movement platform;
Super-size inspection windows, dry air purging and exhaust extraction system;
Integration of indoor deployment test and outdoor deployment test;
Integration of test chamber, static deployment system and lighting system;
